1. Make click on FILE, on OPEN,and look for "simula2b.pca" file, then click OK. check it up all datum are right. Then click in SIMULATION, AND RUN

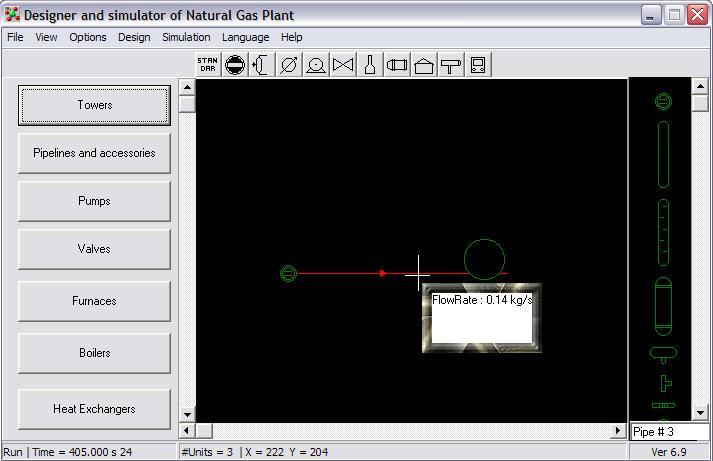

When you put your pointer of the mouse over the line red, that will appear.
The Flowrate is 0,14 kg/s. You have 5 atm inlet of pipe, to 1atm outlet of pipe 100 ft of 1".40% Propane and 60%Butane(LPG) is the product.

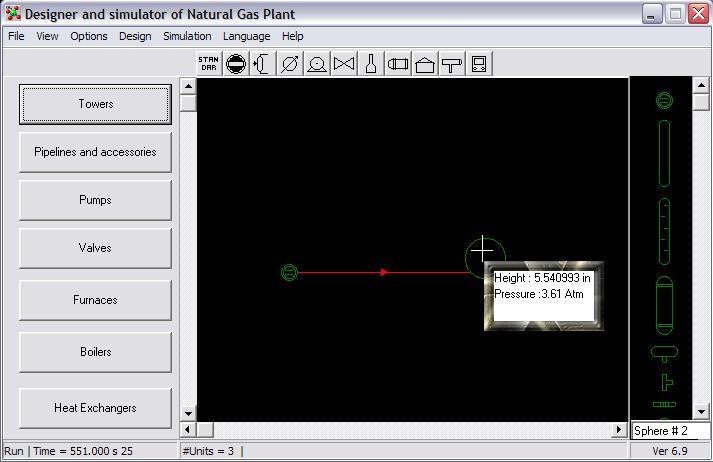

When you put your pointer of the mouse over the tank, that will appear.
The level of liquid is 5,54 in @ 551 seconds. This value change because the sphere is being filled up with LPG.
If you see the simulation for long time, you notice the flowrate will become to decrease.
